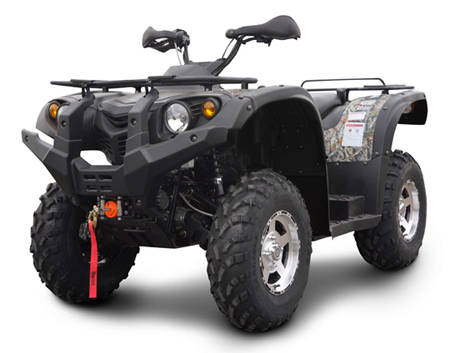

Quickly ripping its way to the top the 500 EFI is the
perfect balance between power, features and price. We wanted
to spoil our riders with some great features such as 12”
Alloy wheels, EFI (electronic fuel injection), 4WD with
differential lock a factory installed 2500lb winch and the
option for EPS (electronic power steering).
- Electronic Fuel
Injection

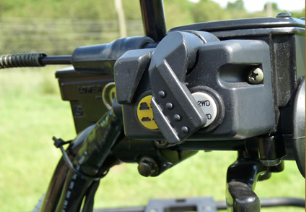

- On Demand 4WD w/ Diff
Lock
- Four Wheel Independent
Suspension

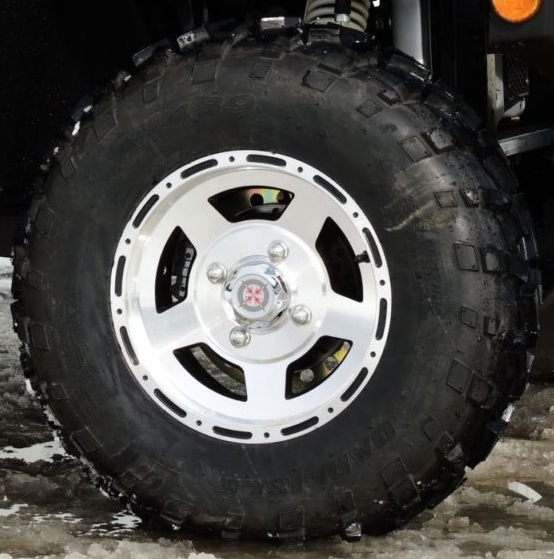

- 12″ Alloy wheels
- 2500lb Winch
- Handguards
|
ENGINE
|
|
Engine
Displacement
|
471cc
|
|
Fuel System
|
Delphi Electronic
Fuel Injection
|
|
Engine Type
|
Four-Stroke
Single SOHC, 2 Valves
|
|
Bore And Stroke
|
84.5 x 84
|
|
Compression Ratio
|
9.4±0.1:1
|
|
Cooling
|
Liquid
|
|
Starting System
|
Electric Start w/
Pull Backup
|
|
DRIVETRAIN
|
|
Transmission
|
Automatic CVT w/
L-H-N-R-P
|
|
Drive System
|
On Demand 2-WD /
4-WD, Locking Front Differential
|
|
Final Drive
|
Shaft Drive
|
|
CHASSIS
SUSPENSION BRAKES
|
|
Suspension Front
|
Independent Dual
A-arm
|
|
Suspension Rear
|
Independent Dual
A-arm
|
|
Brakes Front
|
Dual Ventilated
Hydraulic Disc
|
|
Brakes Rear
|
Dual Ventilated
Hydraulic Disc
|
|
Tires Front
|
AT26 x 8 – 12
Radial
|
|
Tires Rear
|
AT26 x 10 – 12
Radial
|
|
Alloy Wheels
|
12″ Alloy Wheels
|
|
DIMENSIONS
|
|
Vehicle Weight
|
725 lbs.
|
|
Dimensions
|
88.56″ x 50.38″ x
48.21″
|
|
Wheelbase
|
53.72″
|
|
Towing Capacity
|
1200 lbs
|
|
Cargo Bed
Capacity
|
99 lbs(45kg)
Front Rack / 187 lbs(85kg) Rear Rack
|
|
Ground Clearance
|
10″ (25cm)
|
|
Fuel Capacity
|
17L (4.3US Gal)
|
|
VALUE ADDED ITEMS
|
|

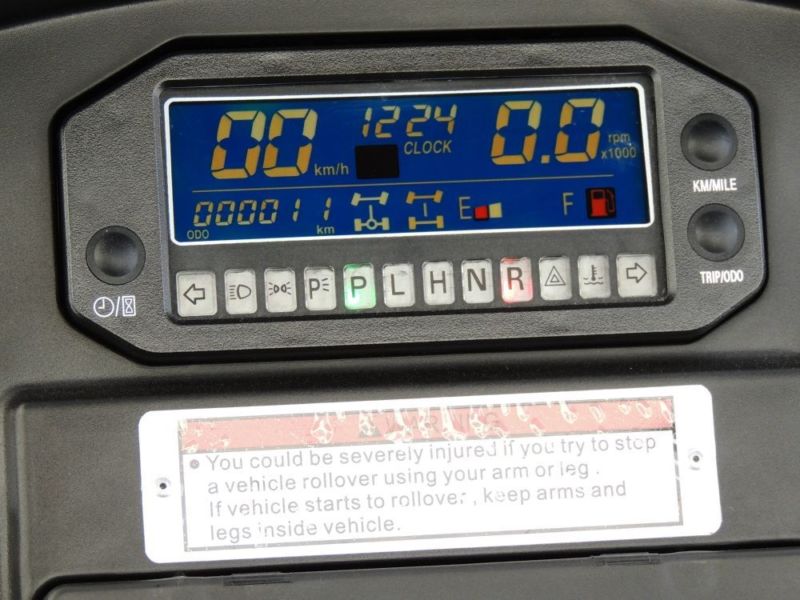

Instrumentation
|
Full Digital
|
|
DC Power Outlets
|
Standard
|
|
Winch
|
2500 lbs
|
|
Electronic Power
Steering
|
Optional
|
|
Available Colors
|
Hunter Green, Blue, Vista Camo, Red, Silver
|
|
